Chart layout for Stripe Apps
Choose the right chart for your data and control chart sizing and arrangement within your app.
Charts visualize trends, comparisons, and distributions in your app. They help users understand data at a glance without reading raw numbers.
Before you begin
Before you implement chart layout patterns, make sure your app meets these requirements:
- Create an app or use an existing one.
- Install @stripe/ui-extension-sdk version 9. 2. 0 or later.
- Import chart components from @the relevant part of the product .
- Review the next-generation chart component references: LineChart , BarChart , MeterChart , and SparkLineChart .
Note
Chart components are available from two import paths. Import from @the relevant part of the product for next-generation chart components with the data-driven API. The components at @the relevant part of the product use an older API that doesn’t support forecasting, comparison periods, or automatic variant rendering.
Apply best practices
Keep these principles in mind when you build chart layouts:
- Choose charts that match your data story : Line charts show trends, bar charts compare totals, meter charts show proportions, and sparklines show compact trends.
- Constrain height explicitly : Wrap every chart (except MeterChart ) in a fixed-height container to prevent layout shift and maintain visual consistency.
- Keep related charts at the same height : When charts appear in the same row or section, use the same height value so they align visually.
- Pair charts with headline metrics : Show the current value above the chart so users get the answer before checking the trend.
Choose the right chart
The right chart depends on the question your users are trying to answer, not the data format.
| User’s question | Chart | How it works | Watch out for |
|---|---|---|---|
| “Is this going up or down?” | LineChart | Connects data points to show direction and rate of change. Zooms the y-axis to make small variations visible. | Don’t use when absolute totals matter more than the trend. Line charts de-emphasize volume. |
| “How much is each category?” | BarChart | Displays discrete totals as bars starting from zero. Makes it straightforward to compare amounts across categories or time periods. | Small differences in large values become invisible because bars must start at zero. Use a line chart if a 100 USD change in 11,000 USD matters. |
| “What’s the breakdown of this total?” | MeterChart | Shows proportions as segments of a single horizontal bar. Compact enough for sidebars and secondary columns. | Only shows a single snapshot. If you need to show how proportions change over time, use a stacked BarChart instead. |
| “What’s the quick trend?” | SparkLineChart | A compact line with no axes or labels. Sits inline next to a KPI value to give directional context at a glance. | Don’t use when users need to read precise values. Sparklines show shape, not numbers. |
Constrain chart height
Chart components expand to fill their container. To control their size, wrap each chart in a Box with a fixed pixel height.
The container owns the height, and the chart fills it. This prevents layout shift when data arrives.
Recommended heights
Use these heights as starting points based on context:
| Context | Height | Rationale |
|---|---|---|
Chart inside a PageModule within the OverviewPage component | 180 | Matches the chart area in standard Dashboard metric cards. Compact enough to show multiple charts without scrolling. |
| Featured chart on a detail page or full-width layout | 320 | Provides room for more data points and axis labels. Matches the detail view pattern used in Dashboard analytics pages. |
SparkLineChart inline with a KPI | No height needed | SparkLineChart sizes itself based on the surrounding text or container. |
// Compact chart within the `OverviewPage` component
<PageModule title="Revenue">
<Box css={{height: 180}}>
<BarChart data={revenueData} />
</Box>
</PageModule>
// Featured chart with more room
<PageModule title="Growth trend">
<Box css={{height: 320}}>
<LineChart data={growthData} />
</Box>
</PageModule>
Common mistake
Don’t set the height on the chart component itself. Chart components don’t accept a height prop in Stripe Apps. Always wrap them in a Box with a fixed height.
MeterChart sizing
The MeterChart renders as a fixed-height horizontal bar with an optional legend below it. It sizes itself intrinsically and doesn’t require a height wrapper.
// No height wrapper needed
<PageModule title="Customers by tier">
<MeterChart
data={tierData}
legendEnabled
unitFormat={{unit: 'number', options: {}}}
/>
</PageModule>
Arrange charts in a row
Place two or three charts side by side using a horizontal stack with fractional widths inside a single PageModule. This creates a chart lockup for comparing related metrics at a glance.
// Charts in a row within the `OverviewPage` component
<PageModule title="Revenue & subscribers">
<Box css={{stack: 'x', gap: 'large'}}>
<Box css={{width: '1/2', stack: 'y', gap: 'xsmall'}}>
<Inline css={{font: 'caption', color: 'secondary'}}>Revenue</Inline>
<Box css={{height: 180}}>
<BarChart data={revenueData} />
</Box>
</Box>
<Box css={{width: '1/2', stack: 'y', gap: 'xsmall'}}>
<Inline css={{font: 'caption', color: 'secondary'}}>Subscribers</Inline>
<Box css={{height: 180}}>
<LineChart data={subscriberData} />
</Box>
</Box>
</Box>
</PageModule>
Common mistake
Don’t wrap PageModule inside a Box or other layout container. PageModule must be a direct child of OverviewPage or DetailPage. Place the horizontal stack layout inside the PageModule, and use caption-styled labels to identify each chart.
Fractional width tokens
Use fractional widths to divide the row. Unlike percentages, fractional tokens account for the gap between items.
| Charts per row | Width per chart | When to use |
|---|---|---|
| 2 | 1/2 | Two related metrics of equal importance. |
| 3 | 1/3 | A Dashboard overview with multiple metrics at a glance. |
| 1 large + 1 small | 2/3 + 1/3 | A primary chart paired with a secondary breakdown or meter. |
// Asymmetric layout within the `OverviewPage` component
<PageModule title="Growth & distribution">
<Box css={{stack: 'x', gap: 'large'}}>
<Box css={{width: '2/3', stack: 'y', gap: 'xsmall'}}>
<Inline css={{font: 'caption', color: 'secondary'}}>Growth</Inline>
<Box css={{height: 180}}>
<LineChart data={growthData} />
</Box>
</Box>
<Box css={{width: '1/3', stack: 'y', gap: 'xsmall'}}>
<Inline css={{font: 'caption', color: 'secondary'}}>Distribution</Inline>
<MeterChart data={tierData} legendEnabled unitFormat={{unit: 'number', options: {}}} />
</Box>
</Box>
</PageModule>
Common mistake
Don’t place more than three charts in a single row. Charts become difficult to read when compressed below roughly 200px wide. Use PageModule within the OverviewPage or DetailPage components to organize multiple charts.
Give charts a background
To draw focus to specific charts, add a background. Group them inside a Box with backgroundColor: "container" for a layered effect.
<Box css={{ padding: "small", borderRadius: "medium", backgroundColor: "container", stack: "y", gap: "small" }}>
<Box css={{ padding: "medium", borderRadius: "medium", backgroundColor: "surface" }}>
<Box css={{ height: 180 }}>
<LineChart data={growthData} />
</Box>
</Box>
</Box>
Pair charts with summary metrics
Show the current value prominently above the chart so users get the answer immediately, then use the chart to show how that value changed over time.
Add a sparkline next to a KPI
Use SparkLineChart to show a compact trend inline with a metric value. This gives directional context without taking up space for a full chart.
<PageModule title="Key metrics">
<Box css={{stack: 'x', gap: 'large', distribute: 'space-between'}}>
<Box css={{stack: 'y', gap: 'xxsmall'}}>
<Inline css={{font: 'caption', color: 'secondary'}}>Total members</Inline>
<Inline css={{font: 'subtitle', fontWeight: 'bold'}}>261</Inline>
<Box css={{height: 24, width: 80}}>
<SparkLineChart data={memberSparkData} />
</Box>
</Box>
<Box css={{stack: 'y', gap: 'xxsmall'}}>
<Inline css={{font: 'caption', color: 'secondary'}}>Revenue</Inline>
<Inline css={{font: 'subtitle', fontWeight: 'bold'}}>$33,200</Inline>
<Box css={{height: 24, width: 80}}>
<SparkLineChart data={revenueSparkData} />
</Box>
</Box>
</Box>
</PageModule>
Add a full chart below metrics
For more detailed trends, place a full-height chart below the headline metrics.
<PageModule title="Revenue">
<Box css={{stack: 'y', gap: 'medium'}}>
<Box css={{stack: 'x', gap: 'large', distribute: 'space-between'}}>
<Box css={{stack: 'y', gap: 'xxsmall'}}>
<Inline css={{font: 'caption', color: 'secondary'}}>Total revenue</Inline>
<Inline css={{font: 'subtitle', fontWeight: 'bold'}}>$33,200</Inline>
</Box>
<Box css={{stack: 'y', gap: 'xxsmall'}}>
<Inline css={{font: 'caption', color: 'secondary'}}>Growth</Inline>
<Inline css={{font: 'subtitle', fontWeight: 'bold'}}>+12%</Inline>
</Box>
</Box>
<Box css={{height: 180}}>
<LineChart data={revenueData} />
</Box>
</Box>
</PageModule>
This follows the pattern used on the Stripe Dashboard home page. A header with the current value sits above a chart showing the trend.

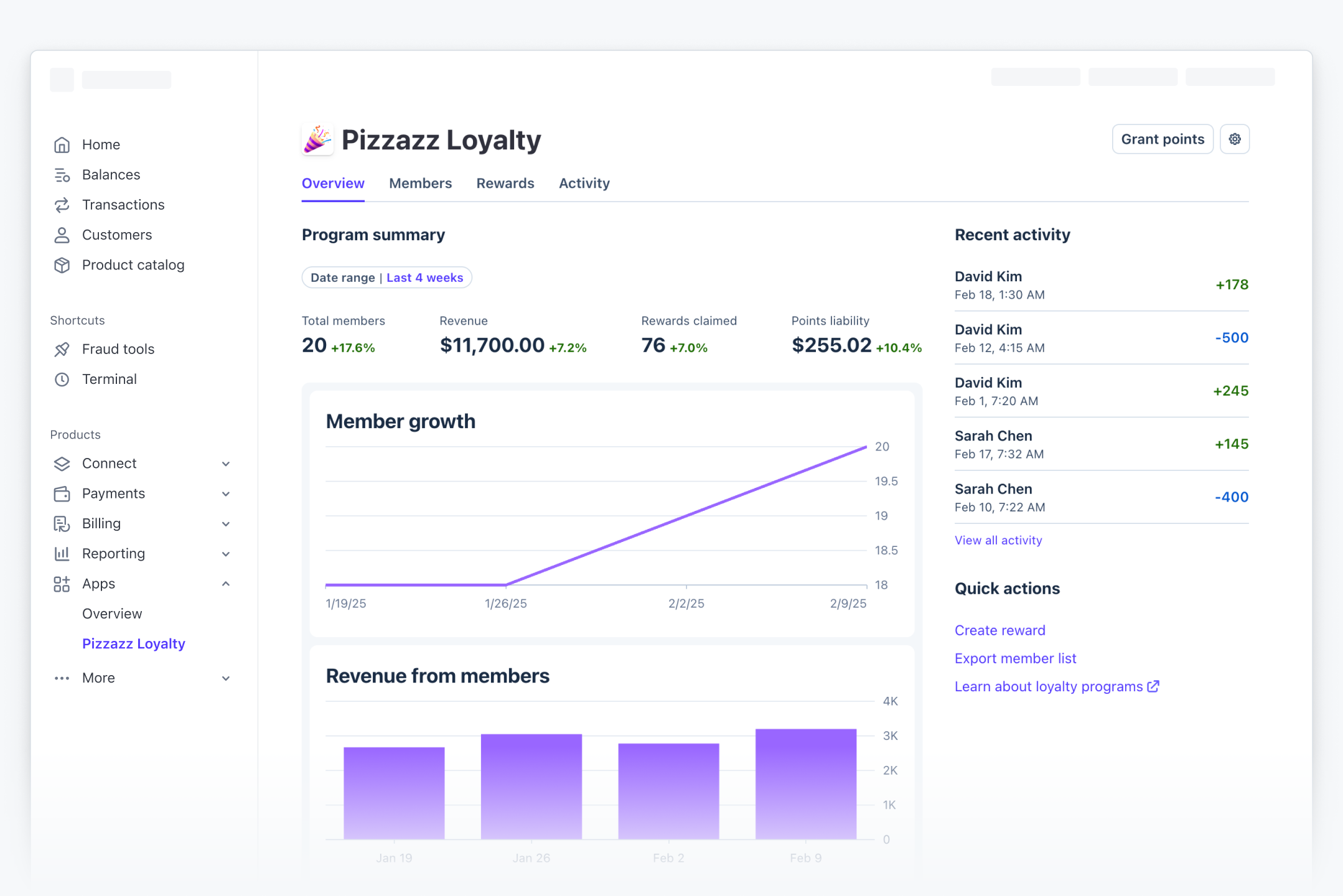

Place charts in a full-page app with OverviewPage
The OverviewPage component is available in full-page apps that use the stripe.dashboard.fullpage viewport. Use OverviewPage to organize multiple metric-chart pairs into primary and secondary columns.
Differentiate chart states
A chart container can be in one of four states: loading, error, empty, or populated. Render them in priority order so users always see the appropriate feedback.
if (isLoading) {
return (
<Box css={{height: 180, stack: 'y', alignX: 'center', alignY: 'center'}}>
<Spinner size="large" />
</Box>
);
}
if (error) {
return <ErrorState onRetry={refetch} />;
}
if (data.length === 0) {
return <EmptyState message="No data for this time period." />;
}
return (
<Box css={{height: 180}}>
<LineChart data={data} />
</Box>
);
Note
Use the same height value for loading, error, empty, and populated states. If your chart container is 180px tall when showing data, your loading spinner also sits inside a 180px container. This prevents content below the chart from jumping when data arrives.
